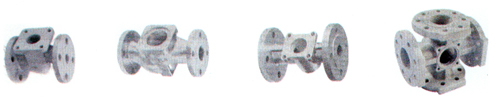

Gate, Globe & Plug Valve Components
Ball Valve Components

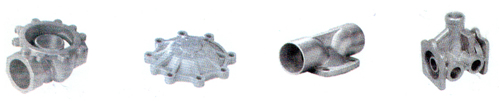

Control Valve Components

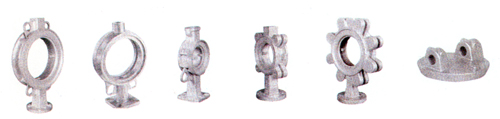

Butter Fly Valve Components
Auto Components
General Engineering Components
Dimensional Tolerance : Investment Casting
Nominal Dimension in mm
Overall Dimension in mm
Centre Distance Tolerance
Over
Up To
Up To 6
6 to 10
10 to 18
18 to 30
30 to 80
80 to 180
180 to 300
300 to 500
For Holes & Bosses
6
6
+ 0.10
+ 0.12
+ 0.15
+ 0.20
+ 0.25
+ 0.25
+ 0.30
+ 0.35
+ 0.12
10
10
+ 0.12
+ 0.15
+ 0.25
+ 0.25
+ 0.30
+ 0.35
+ 0.45
+ 0.12
18
18
+ 0.20
+ 0.30
+ 0.35
+ 0.35
+ 0.40
+ 0.55
+ 0.15
30
30
+ 0.30
+ 0.40
+ 0.45
+ 0.50
+ 0.65
+ 0.25
18
80
+ 0.45
+ 0.55
+ 0.60
+ 0.75
+ 0.35
180
180
+ 0.60
+ 0.70
+ 0.90
+ 0.45
300
300
+ 1.00
+ 1.15
+ 0.70
500
+ 2.00
+ 0.90
* Tolerance on Angle + 1°
* Surface Roughness : As cast : 3.0 To 6.0 Raµm
* Machining Allowance : 0.5 mm to 2 mm whereever machining fitment is expected.
* More closer dimensional tolerances also can be achieved, as per international standard, with additional operations.
* Configuration like, small hole, blind hold. slot, Groove, serration, Knurling, under-cuts can be achieved as cast, depending upon overall geometry, Complexity and size of the components.
